  • Travel Speed Limiting Systems for EOT Cranes: Enhancing Safety and Efficiency

    Electric Overhead Traveling (EOT) cranes are essential pieces of equipment in manufacturing, construction, warehousing, and material handling industries. Their ability to lift and transport heavy loads across a facility with precision makes them indispensable. However, operating these cranes safely and efficiently requires sophisticated control and safety systems. Among these, travel speed limiting systems play a crucial role in ensuring operational safety, protecting equipment, and improving workflow efficiency.

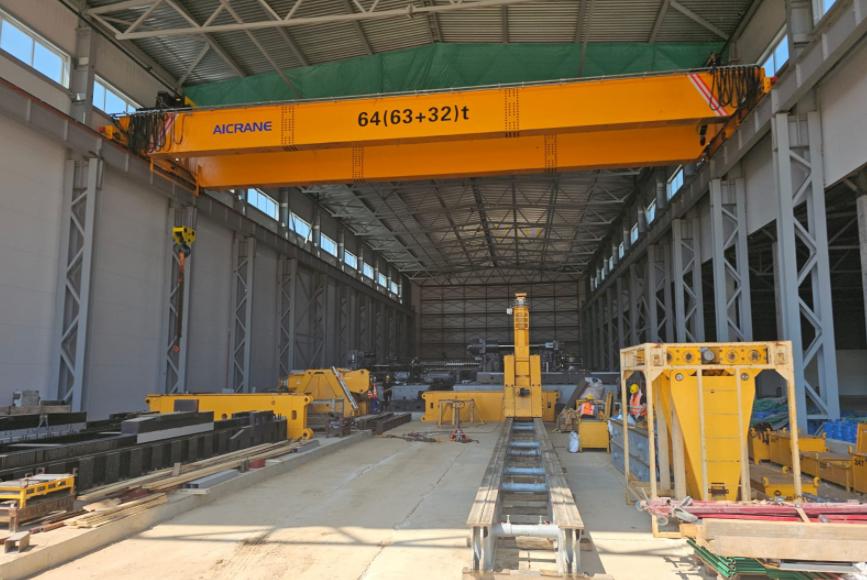

    EOT crane

    Understanding Travel Speed in EOT Cranes

    Travel speed in an EOT crane for sale refers to the velocity at which the crane moves along its runway or tracks. This includes both the main girder movement (trolley movement along the crane bridge) and the bridge movement itself (crane movement along the runway rails). EOT cranes typically have variable speed controls to allow operators to adjust speed according to load, working conditions, and environmental factors.

    While higher travel speeds can improve operational efficiency, excessive speed poses significant risks. Fast crane movement increases the likelihood of load sway, collisions, and operator errors. It also places additional stress on mechanical and structural components, potentially shortening equipment lifespan. To mitigate these risks, engineers implement travel speed limiting systems.

    What Are Travel Speed Limiting Systems?

    A travel speed limiting system is a safety and control mechanism integrated into an EOT crane to restrict the crane’s maximum allowable speed during operation. These systems are designed to prevent the crane from exceeding safe operating speeds under various conditions, reducing the likelihood of accidents and mechanical damage.

    Modern travel speed limiting systems can be electronic, mechanical, or a combination of both, and they often integrate with the crane’s variable frequency drives (VFDs), programmable logic controllers (PLCs), and other automation systems.

    Key Objectives of Travel Speed Limiting Systems

    1. Operator Safety: Prevents accidents caused by excessive crane speed or sudden movements.

    2. Load Stability: Minimizes load swing by controlling acceleration and deceleration.

    3. Equipment Protection: Reduces wear and tear on motors, gearboxes, brakes, wheels, and rails.

    4. Compliance: Ensures the crane adheres to national and international safety standards.

    5. Operational Efficiency: Maintains smooth operation without unnecessary slowdowns in safe conditions.

    Components of a Travel Speed Limiting System

    Travel speed limiting systems are composed of several integrated components that work together to monitor and control crane movement:

    1. Sensors and Encoders

    Sensors detect the crane’s actual speed along the rails or runway. Encoders on motors measure the rotational speed, which is then translated into linear travel speed. These sensors continuously feed data to the control system, allowing real-time speed monitoring.

    2. Programmable Logic Controller (PLC)

    The PLC acts as the brain of the system. It receives input from sensors, compares the measured speed with pre-set speed limits, and sends control signals to the drive system to adjust the speed accordingly.

    3. Variable Frequency Drive (VFD) Integration

    Most modern EOT cranes are equipped with VFDs to allow smooth and precise speed control. When the PLC detects that the crane is approaching or exceeding the maximum safe speed, it signals the VFD to reduce power to the motors, thus slowing the crane down.

    4. Mechanical Speed Limiters

    In some cranes, particularly older models, mechanical speed limiters such as centrifugal governors or geared limiters are used. These devices physically restrict the maximum speed of the crane trolley or bridge, offering a failsafe if electronic systems fail.

    5. Operator Interface

    Crane operators need clear feedback about the speed limits. Control panels or HMI (Human Machine Interface) screens display current speed, set limits, and alerts, allowing operators to make informed decisions during operation.

    overhead EOT crane

    Types of Travel Speed Limiting Systems

    Travel speed limiting systems can vary depending on the crane design, application, and manufacturer. The main types include:

    1. Fixed Speed Limiting

    The crane is restricted to a pre-determined maximum speed, regardless of load or working conditions. This simple system is suitable for operations with uniform load sizes and minimal dynamic risk factors.

    2. Load-Dependent Speed Limiting

    In this system, the crane’s maximum travel speed changes according to the weight of the load. Heavier loads require slower speeds to reduce load sway and stress on the crane structure. Sensors measure the load weight, and the control system automatically adjusts travel speed.

    3. Zone-Based Speed Limiting

    Some facilities divide the crane runway into zones. Certain zones—such as areas near personnel, sensitive equipment, or tight corners—require reduced travel speed. The crane automatically adjusts its speed based on its current zone, enhancing safety in high-risk areas.

    4. Dynamic Adaptive Speed Control

    Advanced EOT cranes use real-time adaptive control algorithms to optimize speed based on multiple factors, including load, crane condition, wind speed (in outdoor facilities), and operator commands. This type of system provides the highest level of safety and efficiency but requires sophisticated electronics and software.

    Benefits of Travel Speed Limiting Systems

    Integrating travel speed limiting systems into EOT cranes brings multiple benefits for both operators and facility managers:

    1. Enhanced Safety

    Speed control directly reduces the risk of accidents. Limiting travel speed prevents collisions with structures or personnel, reduces load swing, and minimizes sudden movements that could destabilize loads.

    2. Increased Equipment Longevity

    By controlling acceleration, deceleration, and maximum speed, these systems reduce mechanical stress on motors, brakes, and structural components. This prolongs service life and reduces maintenance costs.

    3. Improved Load Handling

    Maintaining optimal travel speed ensures smoother operation. Controlled movement reduces the risk of damaging delicate or heavy loads, which is crucial for industries like manufacturing, warehousing, and material processing.

    4. Regulatory Compliance

    Many countries mandate speed control measures for cranes under national safety standards (e.g., OSHA in the United States, DGUV in Germany, ISO 9927). Implementing speed limiting systems helps companies meet legal requirements.

    5. Operational Efficiency

    While it may seem counterintuitive, speed limiting systems can improve overall efficiency. By preventing unsafe high-speed movements, they reduce downtime caused by accidents or load mishandling. Operators can also work more confidently, knowing the crane is operating within safe parameters.

    Installation and Maintenance Considerations

    Proper installation and regular maintenance of travel speed limiting systems are essential to ensure reliability:

    1. Calibration
      Sensors and controllers must be accurately calibrated to ensure that speed measurements and limits are precise.

    2. Testing
      After installation, the system should undergo comprehensive testing under various loads and operating conditions to verify correct functionality.

    3. Routine Inspections
      Periodic inspections of sensors, VFDs, mechanical limiters, and wiring ensure consistent performance and prevent failures.

    4. Software Updates
      For electronic systems, software updates may be required to address bugs, improve algorithms, or integrate new operational features.

    5. Operator Training
      Operators should be trained to understand speed limiting functions, warning signals, and emergency procedures.

    Real-World Applications

    Travel speed limiting systems are widely used across industries:

    • Steel and Aluminum Mills: Heavy duty overhead cranes handle molten metal and large coils. Speed limiting ensures safe transport without destabilizing heavy loads.

    • Automotive Manufacturing: Cranes move car bodies or assembly components, requiring precise speed control to avoid damage.

    • Warehousing and Logistics: Automated or semi-automated crane systems benefit from zone-based speed control, especially near personnel or storage racks.

    • Shipbuilding and Marine Industry: Cranes lift large ship components and equipment, where load swing could have catastrophic consequences if speeds are uncontrolled.

    Future Trends

    With advancements in automation and Industry 4.0, travel speed limiting systems are becoming more intelligent and integrated:

    • Predictive Algorithms: Using AI and machine learning, cranes can anticipate unsafe conditions and adjust speed proactively.

    • IoT Connectivity: Speed data can be transmitted to facility management systems for real-time monitoring and predictive maintenance.

    • Integration with Anti-Sway Systems: Combined speed and anti-sway controls allow cranes to move heavy loads faster without compromising stability.

    Conclusion

    Travel speed limiting systems are critical for safe, efficient, and reliable EOT crane operations. They protect operators, prevent equipment damage, and ensure compliance with safety standards while optimizing operational efficiency. By carefully selecting and maintaining these systems, businesses can maximize the performance of their cranes, reduce downtime, and protect both their workforce and valuable materials.

    As crane technology evolves, travel speed limiting systems will become increasingly sophisticated, integrating predictive analytics, IoT monitoring, and adaptive controls, further enhancing safety and efficiency across all industries that rely on EOT cranes.

  • EOT Crane Capacity Influence on Hoist, Motor, and Gearbox Selection

    Electric Overhead Traveling (EOT) cranes are an essential part of modern industrial operations, offering the ability to lift, transport, and position heavy loads with precision and efficiency. These cranes are widely used in manufacturing plants, warehouses, steel mills, shipyards, and construction sites. While an EOT crane’s capacity—the maximum weight it can safely lift—is often the first specification considered during procurement, it has profound implications for the selection of critical components such as the hoist, motor, and gearbox. Understanding these relationships ensures that the crane operates safely, efficiently, and with minimal maintenance challenges over its service life.

    eot crane capacity

    Understanding EOT Crane Capacity

    Crane capacity refers to the maximum load a crane can lift under specified conditions. It is usually expressed in metric tons or kilograms. This rating is determined by structural design, hoist capabilities, trolley travel, span, and other operational parameters. However, capacity is not just a number for marketing; it drives the design and selection of almost every component in the crane system.

    Higher-capacity cranes require components that can withstand greater mechanical stress, deliver more power, and maintain consistent performance over time. Underestimating the importance of capacity in component selection can lead to operational inefficiencies, premature wear, safety hazards, and unexpected downtime.

    Influence on Hoist Selection

    The hoist is arguably the most critical part of an EOT crane, responsible for lifting and lowering the load. The crane’s rated capacity directly determines the type, size, and configuration of the hoist.

    1. Load Handling Requirements

    The first consideration is the lifting capacity of the hoist itself. A crane rated for 50 tons cannot use a hoist designed for 10 tons; the lifting mechanism would be structurally inadequate. Manufacturers typically provide hoists in defined load increments, such as 5 tons, 10 tons, 20 tons, and beyond. Selecting a hoist with a capacity equal to or slightly higher than the crane’s rated load ensures safety and reliability.

    2. Lifting Speed Considerations

    EOT cranes must balance lifting capacity with lifting speed. Higher-capacity hoists generally have slower lifting speeds due to mechanical and power limitations. This affects cycle times and productivity, especially in high-throughput operations. For example, a 10-ton hoist may lift at 20 meters per minute, while a 100-ton hoist might only lift at 5–10 meters per minute. Engineers must account for operational requirements when choosing the hoist type and specifications.

    3. Duty Cycle and Load Frequency

    The duty cycle of a hoist—the proportion of time it operates versus rests—also scales with crane capacity. Heavier loads generate higher forces on hoist components, requiring robust mechanical systems and superior materials to endure repeated stress. High-capacity cranes often use hoists designed for heavy-duty applications (Class M4 or M5, according to FEM standards) to handle frequent lifting cycles without overheating or mechanical failure.

    overhead eot crane capacity

    Influence on Motor Selection

    The electric motors in an EOT crane power both the hoist and the trolley mechanisms. Motor selection is heavily influenced by the crane’s capacity, as higher loads demand more torque and power.

    1. Power Rating

    Motor power must be sufficient to lift the rated load at the desired speed while overcoming mechanical and frictional losses in the system. For a low-capacity crane, a small motor may suffice, but for high-capacity cranes lifting hundreds of tons, motors often need hundreds of kilowatts. An undersized motor risks overheating, reduced lifespan, and potential operational failure.

    2. Torque Requirements

    Heavy loads require high torque to initiate and sustain lifting. Torque demand depends not only on the load but also on hoist drum diameter, rope size, and lift height. Proper motor selection ensures smooth acceleration and deceleration, preventing jerking or uneven motion that could damage both the load and the crane.

    3. Starting and Braking Control

    For high-capacity cranes, motors must provide controlled starting and braking to prevent shock loads. Motors with variable frequency drives (VFDs) are often employed to provide smooth acceleration and deceleration, especially when handling delicate or oversized cargo. In contrast, low-capacity cranes may use simpler motor systems without VFDs.

    4. Thermal and Duty Considerations

    High-capacity cranes often operate in continuous or heavy-duty cycles. Motors must be thermally rated for prolonged operation under high load conditions. This often requires motors with advanced cooling systems or higher insulation classes (Class F or H) to prevent overheating.

    Influence on Gearbox Selection

    The gearbox in an EOT crane transmits motor power to the hoist drum and trolley wheels, adjusting torque and speed as necessary. Its selection is also closely tied to crane capacity.

    1. Gear Ratio and Torque Multiplication

    High-capacity cranes require gearboxes capable of handling enormous torque loads. The gear ratio must balance lifting speed with torque multiplication. A higher gear ratio reduces drum speed but increases torque, enabling safe lifting of heavy loads. Incorrect selection can result in insufficient torque, slippage, or catastrophic failure.

    2. Gearbox Type

    For low-capacity cranes, simple spur or helical gearboxes may suffice. For medium- to high-capacity cranes, planetary or double-helical gearboxes are often preferred due to higher efficiency, load capacity, and reduced wear. Heavy duty overhead cranes may also incorporate multi-stage gear systems to distribute the load more evenly.

    3. Lubrication and Maintenance

    Higher-capacity gearboxes generate more heat and mechanical stress, making proper lubrication and cooling critical. Engineers often choose sealed gearboxes with high-quality lubricants or integrated cooling systems to extend service life. Maintenance intervals are also adjusted based on load demands, with high-capacity cranes requiring more frequent inspections and servicing.

    Integration Considerations

    Selecting the hoist, motor, and gearbox independently is insufficient. Engineers must ensure that all components are harmonized to handle the crane’s rated capacity safely. This involves:

    • Matching motor torque to gearbox input: Over- or under-powered motors can cause gear slippage or failure.

    • Ensuring gearbox output matches hoist requirements: Drum speed and torque must align with lifting capacity and duty cycle.

    • Considering safety factors: High-capacity cranes include additional safety margins for overload protection, emergency braking, and redundancy in critical components.

    Impact on Cost and Design Complexity

    Increasing crane capacity significantly affects both cost and design complexity. Higher-capacity hoists, motors, and gearboxes are larger, more robust, and more expensive. Structural components such as girders, trolleys, and end trucks also need reinforcement, adding to overall weight and cost. In many cases, manufacturers provide modular solutions, allowing customization of motor and gearbox sizes based on operational needs, without over-engineering components for rarely used maximum loads.

    Conclusion

    The rated capacity of an EOT crane is far more than a simple specification—it dictates the selection and sizing of the hoist, motor, and gearbox. A carefully engineered match between capacity and component specifications ensures operational efficiency, safety, and longevity. Hoists must be rated for the load, with appropriate speed and duty cycles; motors must deliver sufficient power and torque while accommodating thermal and duty requirements; gearboxes must manage torque multiplication and ensure reliability under heavy load conditions.

    For plant managers, engineers, and procurement teams, understanding the interplay between crane capacity and component selection is essential. Overestimating can lead to unnecessary costs, while underestimating can cause operational failures and safety hazards. Ultimately, optimal component selection based on accurate capacity assessment ensures that EOT cranes deliver reliable, efficient, and safe lifting performance across their operational life.

  • Planning EOT Crane Installation in Pre-Built Steel Structures

    Electric Overhead Traveling (EOT) cranes are integral to industrial operations, enabling efficient material handling in factories, warehouses, and manufacturing plants. Installing an EOT crane in a pre-built steel structure, however, presents unique challenges and requires careful planning. Unlike a structure designed with crane integration in mind, pre-built steel buildings may not have been engineered to accommodate the loads and operational requirements of overhead cranes. In this article, we will explore the critical steps, considerations, and best practices for planning a successful EOT crane installation in a pre-existing steel structure.

    eot crane

    Understanding the Structural Limitations

    The first step in planning EOT crane installation is understanding the structural limitations of the pre-built steel facility. Steel structures are designed based on anticipated loads, including the weight of the roof, walls, and sometimes light equipment, but not necessarily heavy duty overhead crane operations. An EOT crane imposes significant point loads on the supporting beams and columns, as well as dynamic forces from acceleration, deceleration, and lateral movement.

    Load Assessment

    To begin, it is essential to assess both the static and dynamic loads that the crane will introduce. Static load includes the crane’s self-weight, the hoist, trolley, and the maximum rated lifting load. Dynamic loads are more complex, encompassing factors such as inertia when the crane starts or stops, the impact of sudden movements, and potential vibrations. Structural engineers typically use load multipliers and safety factors to account for these dynamic effects, ensuring that the steel beams and columns can sustain the stresses without deformation or failure.

    Column and Beam Strength

    Once load calculations are complete, the next step is evaluating whether existing columns and girders can safely carry the crane load. This assessment often involves examining the flange thickness, web dimensions, and the quality of steel connections. If the existing steel members are insufficient, reinforcement may be required, such as welding additional plates, installing secondary beams, or using external support structures.

    electric overhead travelling crane

    Spatial Planning and Crane Layout

    Planning the physical layout of the EOT crane is crucial to ensure optimal operational efficiency while maintaining safety.

    Determining Crane Span and Runway

    The span of the crane is determined by the distance between the runway rails, which are typically mounted on the building’s main girders or columns. Pre-built steel structures may have fixed column spacing, which dictates the maximum crane span. Installing a crane with a span too wide for the existing structure can lead to excessive bending moments and reduced safety.

    Similarly, the runway length must be considered. The crane should be able to traverse the intended workspace without obstruction. Pre-existing roof trusses, cross beams, or structural bracing can interfere with the crane’s path, requiring careful planning or structural modifications.

    Headroom Requirements

    Another critical factor is headroom—the vertical distance between the crane hook in its lowest position and the floor or highest point of any obstruction. Pre-built structures may have limited headroom, especially if they were designed for light-duty operations. Choosing a low-headroom EOT crane design or adjusting trolley hoist dimensions may be necessary to accommodate spatial restrictions.

    Structural Reinforcement Considerations

    When pre-built steel structures cannot support the full load of the EOT crane, reinforcement is mandatory. Reinforcement ensures that the crane operates safely, reduces deflection, and extends the service life of both the crane and the building.

    Types of Reinforcements

    1. Beam and Column Strengthening: This includes welding steel plates or adding secondary steel members to existing beams and columns to increase load-bearing capacity.

    2. Additional Support Columns: In some cases, new steel columns are installed beneath critical points to distribute the load more evenly. This approach is especially common for long-span cranes.

    3. External Crane Runway Supports: If internal reinforcement is insufficient, an external runway structure can be added along the building’s length to carry the crane loads without overstressing the primary steel structure.

    Joint and Connection Enhancements

    The connections between beams, columns, and roof trusses are critical points of stress. Reinforcing these joints with gusset plates, high-strength bolts, or welded connections can prevent structural failures caused by repetitive crane movement and dynamic forces.

    Compliance with Safety Standards

    Safety is paramount when installing an EOT crane in any steel structure. Engineers and planners must ensure compliance with relevant international and local standards, such as:

    • ISO 4301-1: Classification of cranes by lifting capacity.

    • ISO 9927: Inspection, maintenance, and operation of cranes.

    • Occupational Safety and Health Administration (OSHA) standards for crane operation in industrial facilities.

    Adhering to these standards ensures that the crane installation minimizes risk to personnel, equipment, and the building itself.

    Coordination with Other Systems

    Pre-built steel structures often house electrical, HVAC, and mechanical systems. Planning an EOT crane installation requires careful coordination with these systems to avoid interference.

    • Electrical Systems: Ensure that the crane’s power supply is adequately rated and routed without conflicting with existing conduits.

    • Lighting and HVAC: Crane height and movement should not obstruct lighting fixtures or air ducts.

    • Fire Safety Systems: Verify that sprinkler systems and emergency exits remain accessible and compliant after installation.

    Installation Logistics

    The logistics of installing an EOT crane in a pre-built structure involve careful planning of lifting, assembly, and alignment procedures.

    Selecting a Crane Supplier

    Choosing an experienced eot crane supplier is critical. Reputable suppliers provide detailed installation plans, conduct structural assessments, and may offer on-site or remote technical guidance.

    Installation Sequence

    The typical installation sequence includes:

    1. Delivery of crane components to the site.

    2. Installation of runway rails and structural reinforcements.

    3. Hoisting and positioning the bridge girder onto the rails.

    4. Mounting the trolley and hoist assembly.

    5. Conducting alignment, load testing, and commissioning.

    Alignment is particularly critical, as misalignment of the rails or bridge girder can lead to uneven load distribution, excessive wear, or unsafe crane operation.

    Testing and Commissioning

    Before full-scale operation, the crane must undergo rigorous testing and commissioning. Load testing is conducted to verify that the crane can safely handle its rated capacity. Additionally, operational checks ensure smooth movement, proper braking, and functionality of limit switches, emergency stop systems, and control panels.

    Maintenance Planning

    Planning for maintenance is as important as planning the installation itself. Pre-built steel structures often require periodic inspection of beams, connections, and crane components to ensure ongoing safety and performance. Maintenance schedules should include lubrication, inspection of fasteners, alignment checks, and testing of electrical and mechanical systems.

    Advantages of Proper Planning

    Careful planning and assessment of a pre-built steel structure for EOT crane installation offer numerous benefits:

    • Enhanced Safety: Structural reinforcement and compliance with standards reduce the risk of accidents.

    • Optimized Performance: Proper alignment, headroom, and runway layout improve operational efficiency.

    • Extended Structural Life: Reinforced beams and columns mitigate fatigue and deformation from crane operations.

    • Cost Savings: Early identification of structural limitations prevents costly modifications and downtime during installation.

    Conclusion

    Installing an EOT crane in a pre-built steel structure is a complex task that requires thorough structural assessment, spatial planning, reinforcement considerations, and strict adherence to safety standards. By carefully evaluating existing beams, columns, and roof structures, planning the crane layout, and implementing necessary reinforcements, industrial operators can ensure that their overhead crane operates safely and efficiently. Coordination with other building systems, detailed installation logistics, and rigorous testing further guarantee successful crane integration. Ultimately, meticulous planning transforms a pre-built steel facility into a fully functional crane-operational environment, unlocking the full potential of material handling and productivity.

  • Structural Design for EOT Cranes with Rotating Hoist or Slewing Mechanism

    Electric Overhead Travelling (EOT) cranes are widely used across industries for their ability to handle heavy materials with precision and reliability. In advanced applications, EOT cranes may be equipped with a rotating hoist or slewing mechanism, offering greater flexibility in load positioning and orientation. These features, however, introduce new structural and mechanical challenges that must be carefully addressed during the design phase.

    This article explores the key structural design considerations for EOT cranes with rotating hoist or slewing mechanisms, including their functionality, load implications, support structures, and integration within industrial facilities.

    EOT Crane with Rotating Hoist

    1. Understanding Rotating Hoist and Slewing Mechanisms

    Before diving into structural aspects, it is essential to understand the role of rotating and slewing systems in electric overhead travelling cranes:

    • Rotating Hoist: A hoist mechanism that can rotate the lifted load along a vertical axis, often through a rotating hook or gearbox. It allows operators to precisely position and orient loads without moving the entire crane bridge or trolley.

    • Slewing Mechanism: Typically integrated into the crane trolley or bridge, it allows the hoist or an entire segment of the crane to pivot, either through a slewing ring or bearing assembly. This system is common in jib cranes and portal cranes, but advanced EOT cranes may also incorporate it.

    These mechanisms are used in applications such as:

    • Assembly lines requiring load reorientation

    • Precise placement of cylindrical or asymmetric parts

    • Handling of components in confined spaces

    2. Structural Design Considerations: General Overview

    EOT cranes with slewing or rotating hoist functions involve dynamic forces and moments that differ from conventional crane systems. The structural design must accommodate:

    • Torsional moments due to rotating masses

    • Eccentric loading when loads are rotated off-center

    • Increased lateral and longitudinal forces due to slewing

    • High-precision alignments for bearing assemblies

    The crane structure must be robust enough to resist these additional loads without compromising safety, service life, or accuracy.

    EOT Crane with Slewing Mechanisms

    3. Design of Crane Girder and Trolley Frame

    a. Torsional Rigidity

    In a standard EOT overhead crane for sale, the bridge girder primarily deals with vertical bending. However, a rotating hoist introduces torsional loading due to eccentric rotation of the load. This requires:

    • Use of box girders or I-beams with torsional reinforcements

    • Additional diagonal bracings or stiffeners

    • Finite element analysis (FEA) to predict deformation under dynamic rotation

    b. Reinforced Trolley Frame

    The trolley frame, which carries the rotating hoist or slewing gear, must withstand:

    • Radial and axial forces from the slewing bearing

    • Vibrations and dynamic impacts during rotation

    • Load imbalances caused by off-center rotation

    Reinforced trolley structures with welded box-type construction are preferred to handle these loads.

    4. Slewing Ring or Bearing Integration

    The slewing bearing is one of the most critical components in rotating hoist systems. Structurally, its housing and mounting area must be:

    • Flat and aligned to prevent uneven wear

    • High in rigidity to resist tilting or bending

    • Properly bolted and torque-controlled to maintain structural integrity

    Often, designers add a steel base plate and bearing support ribs to distribute loads uniformly across the trolley.

    5. Rotational Torque and Counterforces

    When a load rotates, especially with a slewing mechanism, it creates torque reactions that transfer into the crane’s structural system. The design must account for:

    • Resisting torque through structural braces or counterweights

    • Bearing block reinforcements

    • Anti-rotation devices or locking systems for stability when idle

    Additionally, torsional impact from sudden stops or emergency braking should be modeled during load simulations.

    6. Runway Beam and Crane Rail Alignment

    The runway beams supporting the crane must be designed for not only vertical wheel loads but also horizontal thrust caused by:

    • Slewing or rotating loads shifting the center of gravity

    • Braking or acceleration torque from the rotating mechanism

    This requires:

    • Robust crane runway beams with lateral bracing

    • High-strength rail clips and bolts

    • Checking deflection limits under combined loading scenarios

    Improper alignment could lead to rail deformation, increased wheel wear, or derailment.

    7. Support Columns and Building Integration

    When installing rotating hoist EOT cranes in steel structure buildings, the support columns and overall building frame must be assessed for:

    • Dynamic side loads

    • Asymmetric loading scenarios

    • Fatigue due to frequent rotation and torsion

    In many cases, column stiffeners or additional bracing systems are added to improve stability. Coordination with building engineers is critical to ensure compatibility with the crane design.

    8. Motor, Gearbox, and Control Systems Placement

    The weight and location of the motor and gearbox for the slewing mechanism can shift the load center on the trolley or bridge. Structurally:

    • Their weight must be included in dead load calculations

    • Vibration dampening pads or base mounts may be required

    • Access platforms or maintenance walkways should be structurally supported

    Electrical cables, festoon systems, and rotating joints must also be protected from bending stresses during rotation.

    9. Dynamic Analysis and Simulation

    Advanced structural design must include:

    • Finite Element Analysis (FEA) to simulate stresses under slewing and rotation

    • Dynamic modeling to analyze how the crane structure responds to rotating loads, braking forces, and resonance

    • Fatigue life analysis for components experiencing repeated rotation and torque

    This ensures the crane meets both safety standards and long-term durability expectations.

    10. Safety and Compliance Standards

    Cranes with rotating mechanisms must meet additional safety and design standards, such as:

    • ISO 8686: Design loads for cranes

    • FEM 1.001: Classification of mechanisms

    • ASME B30.2: Overhead and gantry cranes

    • EN 13001: General design for cranes

    Safety devices must be integrated, including:

    • Slew angle limiters

    • Overload protection

    • Emergency stop for slewing

    • Anti-collision sensors

    11. Maintenance and Accessibility

    The structural design should also consider ease of maintenance, including:

    • Platforms or ladders for accessing slewing gears

    • Removable covers for inspection of rotating components

    • Support beams for handling or replacing the slewing motor or bearings

    Designing with maintenance in mind reduces downtime and improves operational safety.

    Conclusion

    Designing the structure of an EOT crane with a rotating hoist or slewing mechanism involves more than just scaling up standard crane designs. It demands a detailed analysis of torsional forces, dynamic loading, structural reinforcements, and mechanical precision. Each component—from the girder and trolley to the building support—must work in harmony to ensure the crane operates safely and effectively under all conditions.

    With the help of modern simulation tools, compliance standards, and experienced engineering teams, it is possible to integrate slewing and rotating capabilities into overhead cranes without compromising safety or performance. These advanced EOT crane systems enable more versatile material handling operations and play a crucial role in industries where precision and flexibility are paramount.

  • The Importance of After-Sales Service in EOT Crane Supply

    In today’s competitive industrial environment, Electric Overhead Traveling (EOT) cranes are indispensable for handling heavy loads across manufacturing, steel, logistics, and warehousing sectors. However, investing in an EOT crane is not just about buying the equipment—it’s about ensuring long-term reliability, safety, and performance. That’s where after-sales service becomes crucial.

    A well-built crane is only as effective as the support it receives after installation. Even the highest-quality EOT cranes require regular maintenance, quick access to spare parts, troubleshooting, and technical assistance throughout their lifecycle. The difference between a good supplier and a great one often lies in their after-sales service capabilities.

    This article will explore why after-sales service is essential in EOT crane supply, the types of services that matter most, and how businesses can benefit by choosing a supplier that prioritizes long-term customer support.

    eot crane

    Why After-Sales Service Matters

    EOT cranes are complex systems made up of mechanical, structural, and electrical components. Over time, even under optimal conditions, wear and tear is inevitable. Operational safety, efficiency, and uptime depend not only on the crane’s original quality but also on ongoing maintenance and prompt issue resolution.

    Here’s why after-sales service plays a critical role:

    1. Maximizes Equipment Uptime

    Downtime in industrial environments is costly. A non-functional crane can halt production, delay deliveries, and affect the entire supply chain. With strong after-sales service, breakdowns are diagnosed quickly, parts are replaced promptly, and the crane is restored to full function in minimal time.

    2. Extends Crane Lifespan

    Preventive maintenance and timely repairs help prolong the crane’s operational life. Regular servicing ensures that components like motors, hoists, brakes, and electrical systems are functioning properly, thereby delaying the need for replacements or upgrades.

    3. Ensures Operational Safety

    Cranes are high-risk machines. A malfunctioning hoist or control system can lead to serious accidents. After-sales support ensures that safety checks, load testing, and inspections are performed regularly, minimizing the chances of operator injuries or structural damage.

    4. Protects Your Investment

    EOT cranes are significant capital investments. After-sales service helps protect that investment by maintaining performance standards, reducing downtime costs, and avoiding expensive emergency repairs. In many cases, consistent service records are also essential for warranty claims.

    eot crane for sale

    Core Elements of After-Sales Service in EOT Crane Supply

    A comprehensive after-sales service package includes multiple elements, each contributing to the crane’s performance and reliability over its entire lifecycle.

    1. Installation and Commissioning Support

    Though technically a pre-operation phase, installation and commissioning are often considered part of after-sales support. Leading suppliers either send technicians on-site or offer remote installation guidance to ensure the crane is properly assembled, aligned, tested, and calibrated for full operational use.

    2. Maintenance Services

    Routine maintenance is the backbone of crane reliability. Suppliers may offer:

    • Scheduled inspections

    • Lubrication of moving parts

    • Load testing and limit switch calibration

    • Brake and wire rope checks

    • Electrical panel cleaning and control verification

    These services are either included in annual maintenance contracts (AMCs) or provided as needed.

    3. Spare Parts Availability

    Prompt access to genuine spare parts is one of the most important aspects of after-sales support. Downtime can be significantly reduced when parts like contactors, brake pads, motor components, hoist ropes, and gearboxes are readily available.

    Top suppliers maintain:

    • On-site or regional parts warehouses

    • Real-time inventory management systems

    • Quick-dispatch policies for urgent orders

    4. Technical Support and Troubleshooting

    Even with the best maintenance, unexpected faults can occur. Whether it’s an electrical fault, control system glitch, or mechanical wear, responsive technical support can minimize disruption.

    Good suppliers offer:

    • 24/7 technical helplines or service portals

    • Remote diagnostics via video or remote access

    • On-site technician dispatch for complex issues

    5. Training and Documentation

    Operators and maintenance teams must be well-trained to use the crane safely and efficiently. Suppliers offering after-sales service often include:

    • On-site operator training

    • Maintenance procedure training

    • Safety manuals and troubleshooting guides

    • Video tutorials and documentation updates

    A knowledgeable workforce means fewer errors, better crane care, and safer operations.

    6. Warranty and Service Agreements

    Reputable EOT crane suppliers offer clearly defined warranties that cover equipment performance and material defects for a specific period. Alongside the warranty, long-term service contracts can include:

    • Preventive maintenance visits

    • Emergency response services

    • Software or system upgrades

    • Extended warranty options

    These agreements provide peace of mind and help customers forecast operational expenses more accurately.

    How Customers Benefit from Strong After-Sales Support

    Choosing an EOT crane supplier with a solid after-sales service program leads to numerous advantages:

    ✔ Reduced Downtime

    Breakdowns are resolved quickly through responsive service teams and readily available parts.

    ✔ Lower Operating Costs

    Proactive maintenance prevents major failures and helps avoid costly replacements.

    ✔ Increased Operator Confidence

    Training and support make operators more confident and efficient, improving overall productivity.

    ✔ Enhanced Safety Compliance

    Routine inspections and maintenance help meet local safety regulations and reduce liability risks.

    ✔ Long-Term ROI

    With expert care, cranes last longer and deliver better performance over time, ensuring maximum return on investment.

    Key Indicators of a Reliable After-Sales Program

    When evaluating EOT crane suppliers, look for the following signs of strong after-sales support:

    • A dedicated service department with experienced technicians

    • 24/7 technical support and emergency assistance availability

    • A well-stocked inventory of spare parts

    • On-site and remote service capabilities

    • Customizable service contracts or AMCs

    • Regular communication on service schedules and safety updates

    • Strong customer testimonials and case studies

    Real-World Example: The Value of After-Sales Support in Action

    Consider a manufacturing plant that installed a 25 ton overhead crane for material handling. Within six months, a software issue developed in the crane’s remote control system, threatening production downtime. Because the supplier had a responsive service team, the fault was diagnosed remotely, and a technician was dispatched within 24 hours with the correct parts. The crane was operational again in less than a day—saving the company significant time and avoiding lost output.

    This kind of fast, reliable after-sales service transforms what could have been a costly delay into a minor hiccup.

    Conclusion

    In the world of industrial lifting, the true test of an EOT crane supplier lies not just in the product they deliver but in the support they offer after the sale. Strong after-sales service ensures your crane remains safe, reliable, and productive long after it’s installed.

    When selecting an EOT crane supplier, prioritize those who offer comprehensive after-sales programs—covering installation support, maintenance services, spare parts availability, technical troubleshooting, and operator training. It’s not just about buying a crane; it’s about building a long-term partnership that supports your success.

    If you’re looking for an EOT crane solution backed by expert after-sales service, contact us today. We’re here to support your business every step of the way.
